AVAILABLE IN 2, 4, 6, & 8 HEAD VERSIONS

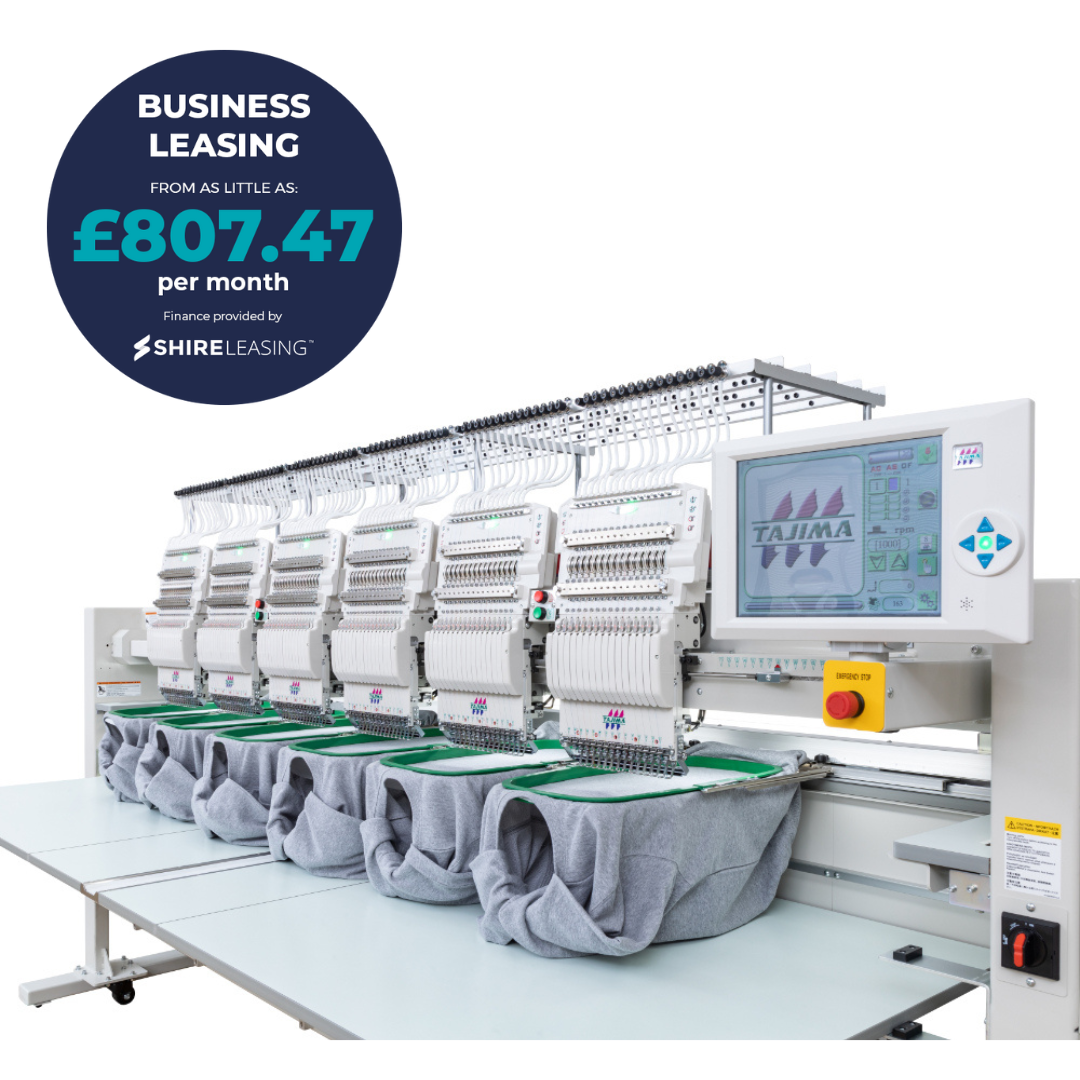

The Tajima TMEZ-KC Type-2 series multi-head embroidery machine is the ultimate machine from Tajima with features such as a slim cylinder arm, DCP (digitally controlled presser foot), direct command switches and the unique i-TM (Intelligent Thread Management) which makes this model stand out from all others. The TMEZ Series gives you everything you need, resulting in ease of use, high production efficiency, ultimate quality and overwhelming durability and performance.
Lease price shown is for a 4 head machine.
STANDARD FEATURES OF TMEZ-KC TYPE 2 MULTIHEAD MACHINES
40,000,000 Stitch Memory
Auto Colour Change
Auto Thread Break Sensor
Auto Thread Trim
Barcode Ready
Touchscreen Panel
High Speed Rotary Hook
LAN Enabled
Quick Changeover
Pickerless Trimmer
Spiral Tubes
USB Enabled
DIRECT COMMAND SWITCHES
Common functions of the operation panel can be manipulated from each head, thus improving operator working efficiency.
VERSATILE CAP DRIVER
The cap driver incorporates a lower shaft and a third locking pin to stabilize the cap during embroidery to enhance quality and allows cap production at high speeds.

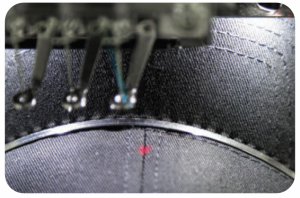

LASER POSITION MARKER
A red dot projected above the needle hole helps identify the actual embroidery area when tracing the design before stitching.
TOUCH SCREEN PANEL
The easy to use, touch screen operation panel has picture icons to guide you and has high-capacity memory that can store up to 40,000,000 stitches or 650 designs.
KEY FEATURES OF TFMX-IISC MULTIHEAD MACHINES
TRIMMED NEEDLE PLATE
A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.

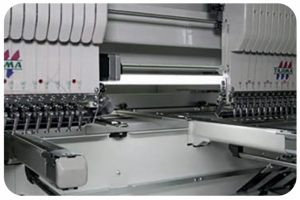

LED NEEDLE BASE LIGHT
The LED Needle Base Light illuminates the needle area and enables the operator a better view of the item being embroidered.
STEEPER TILT HEAD
The Steeper Tilt Head angles the bill of a cap and allows stitching closer to the edge of the bill, increasing the embroidery area.

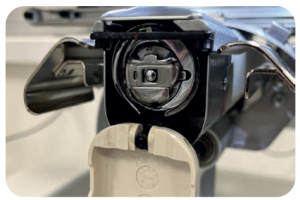

PICKERLESS TRIMMER
Tajima has recently developed the new style ‘pickerless’ trimming system which along with the Slim cylinder arm, allows you to embroider smaller objects. Caps, socks, gloves and pockets are no longer a struggle.
With the development of the Tajima Slim Cylinder arm, the needle plate has also been redesigned to allow for an increased embroidery area on many items. Easy removal makes maintenance a simple task.
- No upper thread manual tension adjustment for the operator.
- Automatic tension adjustment based on thread type.
- Automatic tension adjustment for a change from run to satin stitches.
- The presser foot automatically detects the fabric thickness.
- Automatic evaluation of upcoming stitch types and adjusting according to stitch length, stitch direction, type of stitch, machine speed and thickness of the fabric.
SPECIFICATIONS FOR TMEZ-KC MULTIHEAD MACHINES
TMEZ 4 HEAD STANDARD
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 360mm
TUBULAR EMB. FIELD 439mm x 279mm/ 17.3” x 10.9”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 108.2” W x 53” D x 65” H
MACHINE WEIGHT 486 kgs
MIN. DOOR CLEARANCE 34” W
TMEZ 6 HEAD STANDARD
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 360mm
TUBULAR EMB. FIELD 439mm x 279mm/ 17.3” x 10.9”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 129.1” W x 53” D x 65” H
MACHINE WEIGHT 656 kgs
MIN. DOOR CLEARANCE 34” W
TMEZ 8 HEAD STANDARD
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 360mm
TUBULAR EMB. FIELD 439mm x 279mm/ 17.3” x 10.9”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 157.4” W x 53” D x 65” H
MACHINE WEIGHT 834 kgs
MIN. DOOR CLEARANCE 34” W
TMEZ 2 HEAD STRETCH
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 500mm
TUBULAR EMB. FIELD 439mm X 419mm / 17.3” x 16.5”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 88.9” W x 53” D x 65” H
MACHINE WEIGHT 448 kgs
MIN. DOOR CLEARANCE 34” W
TMEZ 4 HEAD STRETCH
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 500mm
TUBULAR EMB. FIELD 439mm x 419mm/ 17.3” x 16.5”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 128.3” W x 53” D x 65” H
MACHINE WEIGHT 642 kgs
MIN. DOOR CLEARANCE 34” W
TMEZ 6 HEAD STRETCH
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 500mm
TUBULAR EMB. FIELD 439mm x 419mm/ 17.3” x 16.5”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 167.7” W x 53” D x 65” H
MACHINE WEIGHT 813 kgs
MIN. DOOR CLEARANCE 34” W
TMEZ 8 HEAD STRETCH
NEEDLES 15
MAX SPEED 1100 SPM
HEAD INTERVAL 500mm
TUBULAR EMB. FIELD 439mm x 419mm/ 17.3” x 16.5”
CAP EMBROIDERY FIELD 75mm x 360mm / 3” x 14.2”
MACHINE DIMENSIONS 207” W x 53” D x 65” H
MACHINE WEIGHT 1126 kgs
MIN. DOOR CLEARANCE 34” W
