The Tajima TMBP2-XC single-head, cylinder type standard model embroidery machine is capable of embroidering over a wide field. The maximum embroidery field is 550 x 600 mm, Tajima’s largest single-head embroidery field, and can handle large embroideries on dresses, sports jerseys, tablecloths, curtains, bedding and more.
NEEDLES 15
MAX SPEED 1200 RPM
TUBULAR EMB. FIELD 550mm x 600mm
EMB. FIELD WITH X-EXTENSION UNIT 550mm x 1200mm
CAP EMBROIDERY FIELD 75mm x 360mm
MACHINE DIMENSIONS 1286 W x 959mm D x 1006 H
MACHINE DIMENSIONS WITH X-EXTENSION UNIT 2514mm W x 1499mm D x 1610 H
MACHINE WEIGHT 120kg
MIN. DOOR CLEARANCE 1286mm wide or with X-extension Unit 2675mm
Equipped With One Of The Industry’s Largest Touch Screens!
The large 12.1-inch operation panel, one of the largest in the industry, features convenient icons and allows you to switch the language used for operating the machine.

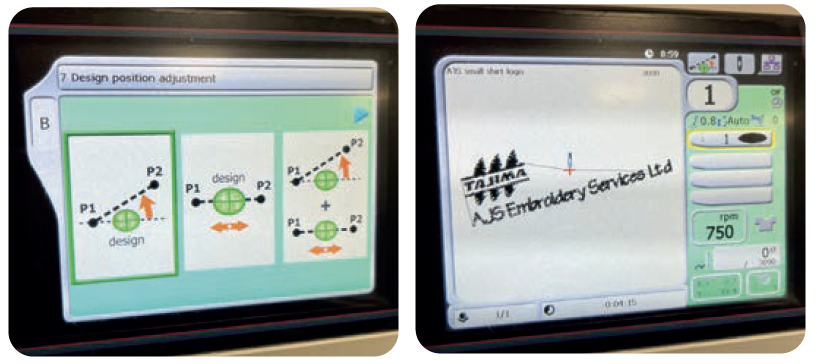

Design Position Adjustment
The Design Position Adjustment feature allows a design to follow any reference line of your choice ensuring perfect alignment every time.

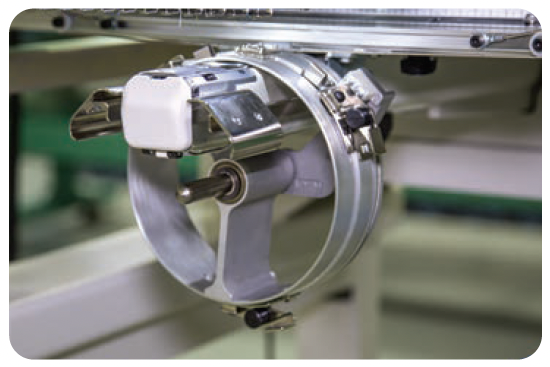

Versatile Cap Driver
The cap driver incorporates a lower shaft and a third locking pin to stabilise the cap during embroidery to enhance quality, and run at higher speeds.

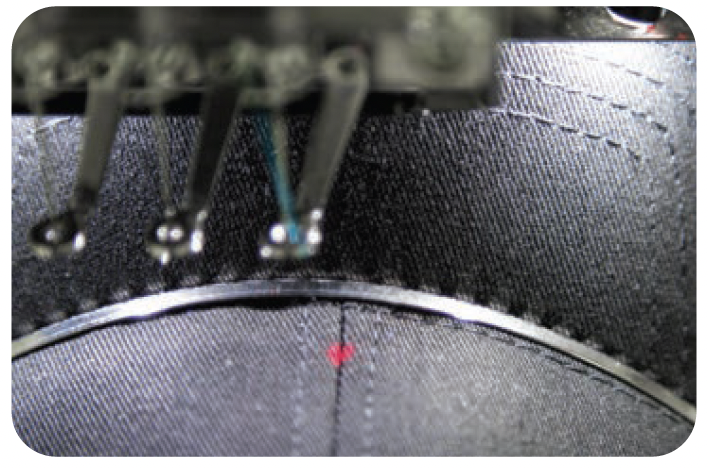

Laser Position Marker
A red dot projected above the needle hole helps identify the actual embroidery area when tracing the design before stitching.

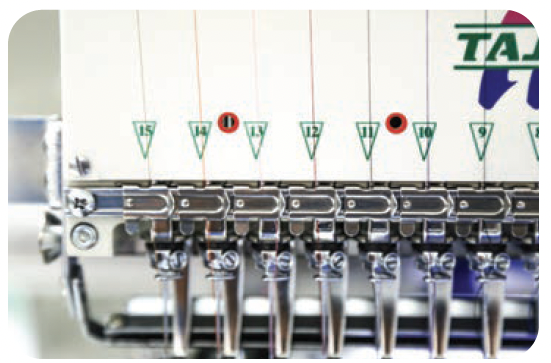

Thread Locking System
The Thread Locking System secures the thread after a trim to help prevent the thread pulling out during needle startup.

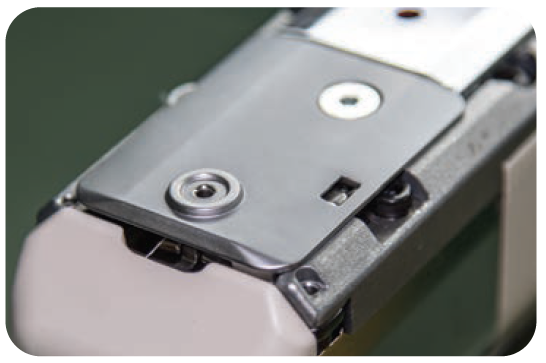

Trimmed Needle Plate
A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.

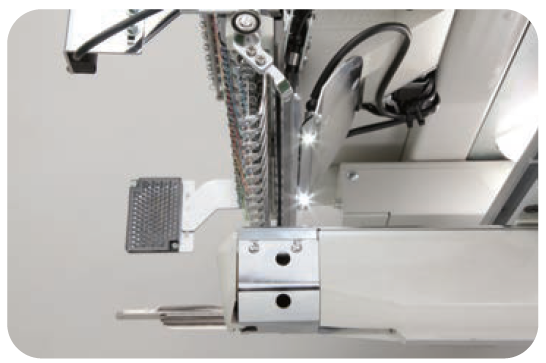

LED Needle Base Light
The LED Needle Base Light illuminates the needle area and enables the operator a better view of the item being embroidered.

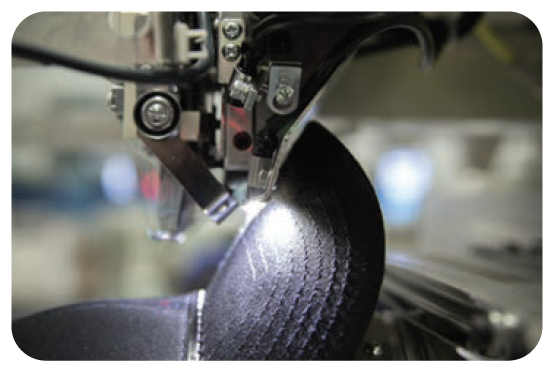

Steeper Tilt Head
The Steeper Tilt Head angles the bill of a cap and allows stitching closer to the edge of the bill, increasing the embroidery area.

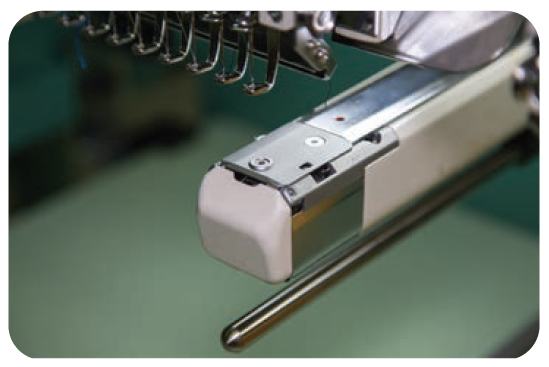

Slim Cylinder Bed
The Slim Cylinder makes it possible to embroider on smaller objects such as socks, gloves, and
pockets. The Slim Cylinder is 12mm narrower than the original size cylinder.

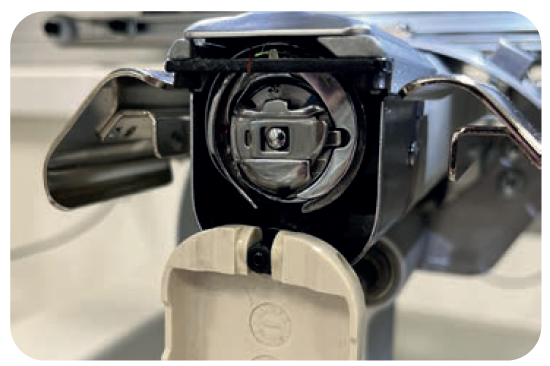

Pickerless Trimmer
Tajima developed the new style ‘pickerless’ trimming system which along with the Slim cylinder arm, allows you to embroider smaller objects. Caps, socks, gloves and pockets are no longer a struggle.
With the development of the Tajima Slim Cylinder arm, the needle plate has also been redesigned to allow for an increased embroidery area on many items. Easy removal makes maintenance a simple task.
EASILY NETWORK YOUR SOFTWARE AND MACHINES FOR IMPROVED WORKFLOW.
All new machines come complete with a 2 year warranty, installation and operator training tailored to your needs.
